Magneplanar speakers |
Post Reply
|
Page <1 11121314> |
| Author | |
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
 Post Options
 Thanks(0)
 Quote Reply
 Posted: 28 Jan 2024 at 11:57am |
|

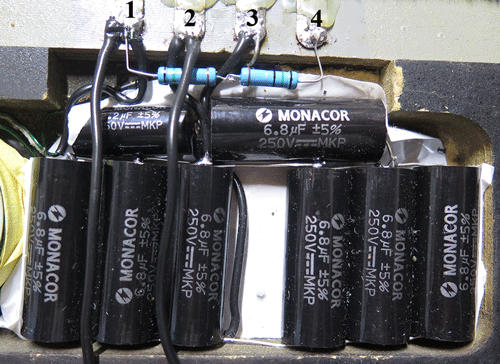

For completeness here is the right channel with the LF and HF wires in the same places.  I inserted 1 ohm resistance (actually two of 0.5 ohms) in series with the HF as it was about 2dB louder than the left. You'll see that I just moved the inductor and input wires from tag 4 to tag 1 and fitted the resistors between those tags. |
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
 |
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 30 Jan 2024 at 11:15am |
|
The HF resistor came about when I used REW to measure my SMGa's for the first time. I read somewhere that panel speakers were hard to measure so I hadn't tried until now. Perhaps it was true for simple SPL readings but they were fine with the programmes I tried. I could see the difference in a selection of mic positions. Tighter instrument positioning after so I am glad I did this.
Today I ran L/R sweeps with the microphone where my head would be then for half a dozen places nearby. I had REW generate an average response for the left readings and the right respectively, took each into the EQ module and generated filters for my house curve. I used REW"s parametric filters in Roon, manually input for each channel as a procedural equaliser. I am happy with the adjusted sound. Another time I'll try an impulse file as a convolution filter.
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 31 Jan 2024 at 3:17pm |
|
Following a very good tutorial on YouTube I prepared a convolution filter using REW (Room Equalisation Wizard). I went through the steps twice then imported minimum phase versions for different sample rates into Roon. It's good to learn something new and hear the results.
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 31 Jan 2024 at 4:55pm |
|
A slightly fuller explanation is that I measured the effect of my hifi speakers and room on the sound where I sit then used the software to model this digitally I reversed the effect and exported it as an impulse response. The convolution process in Roon combines that with the music input to give a new signal that sounds much clearer and more even when played through my hifi in my room.
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 09 Jun 2024 at 6:16pm |
|
Thank you. Mine are flat panel speakers, essentially MDF pieces 48 inches by 18 inches with a large hole for the membrane. I share your appreciation of Ash's clever use of open cardboard boxes with full range speakers.
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2025 at 9:14am |
|
I am giving my Maggies a quick spin playing some LP's and am impressed by the sound. Plenty of detail and an airy sound. They've been standing in front of my record shelves so I was going to unscrew the legs and slide them into a gap between cabinets. Now I may keep them out a bit longer!
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
Fatmangolf
Moderator Group
Joined: 23 Dec 2009 Location: Middlesbrough Status: Offline Points: 9695 |
Post Options
Thanks(0)
Quote Reply
Posted: 22 Feb 2025 at 9:21am |
|
Adding subwoofers has improved the sound even though they are slightly too loud as they are aligned to my LS50's.
|
|
|
Jon
Open mind and ears whilst owning GSP Genera, Accession M, Accession MC, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC. |
|
|
|
|
