How simple can an audio computer be?

 Post Reply Post Reply Page  <1 48495051>
Author
CageyH View Drop Down
Senior Member
Senior Member
Avatar

Joined: 30 Apr 2012
Location: Toulouse, Franc
Status: Offline
Points: 1678
Post Options Post Options   Thanks (0) Thanks(0)   Quote CageyH Quote  Post ReplyReply Direct Link To This Post Posted: 07 Feb 2023 at 6:16pm
Originally posted by Ash Ash wrote:

Pink Faun S/PDIF card arrived today. Cardboard box is a little beat up but the contents are fine. Plugged it into my motherboard powered by Molex and it is recognised as a sound device in Windows 10. I look forward to hooking this up to the Majestic DAC over the coming days.

P.S Graham, CMI8888 Wink

What do you think of the PF card? Did it make a difference?
Kevin
European loan coordinator, based near Toulouse, France.
Back to Top
Ash View Drop Down
Senior Member
Senior Member
Avatar

Joined: 18 Mar 2013
Location: Dorset
Status: Offline
Points: 4334
Post Options Post Options   Thanks (1) Thanks(1)   Quote Ash Quote  Post ReplyReply Direct Link To This Post Posted: 08 Feb 2023 at 7:18pm
Not made any conclusions yet as I have been distracted by different types of computers over the last few months. I have bought several mini PCs recently along with various M.2 adapters so that I can use both the Pink Faun S/PDIF and USB cards with tiny Intel and AMD computers. I will upload some content soon. I am thinking of modding a HP Z240 server case to accommodate a Ryzen mini-PC like the Minisforum HX99G if I want to upgrade the guts of the computer.

I have USB-C OTG adapters for Bitzie and Majestic. I have so much great stuff at my disposal but very limited space to keep it set up. In a way, money rich but space poor. I have over half a dozen PCs from Dell Optiplex 7010 SFF to Up Xtreme i11 0000 version to UP Squared V2 to UM690 to an older NUC too. Need to sell some PCs over the coming weeks to clear some space. Going to settle on AMD Ryzen over Intel I think, especially once I can get a cellular module working via an M.2 adapter. I have gone on quite a tangent due to my interest in computer hardware. I will probably stick with PCIe over GPIO for the digital transport as PCIe hardware is more universally available on almost all computer platforms.


Edited by Ash - 08 Feb 2023 at 7:31pm
We do not see things as they are. We see things as we are.
Back to Top
Ash View Drop Down
Senior Member
Senior Member
Avatar

Joined: 18 Mar 2013
Location: Dorset
Status: Offline
Points: 4334
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ash Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2023 at 8:38pm

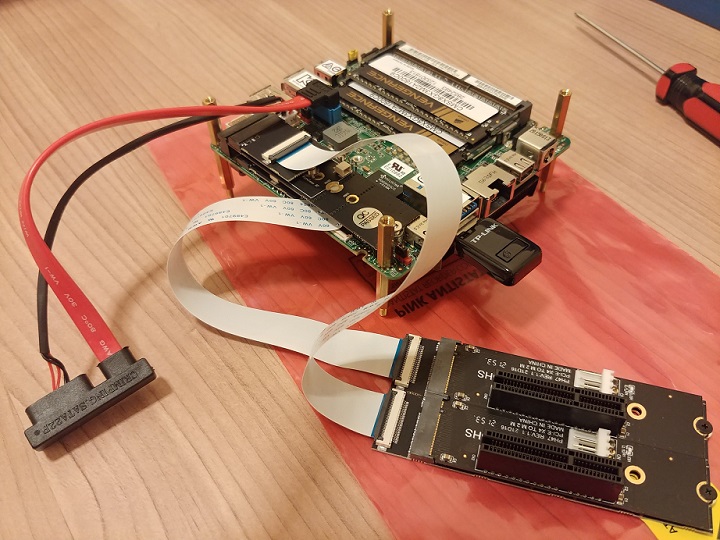

Old Intel NUC NUC5i5MYBE motherboard. 2-core 4-thread 15W CPU with 2x8GB DDR3 1600MHz SO-DIMM RAM. 12V barrel jack and has a SATA3 port which I will likely use for a Blu-Ray optical drive. Going to use a TP Link USB network adapter for wifi and will use a USB 3 flash drive for storage and operating system, which can be Linux or Windows. I have converted the two M.2 slots using adapters to provide two PCIe slots, which should be capable of two lanes of bandwidth each, more than enough for the Pink Faun soundcards. Much more connectivity options than a Raspberry Pi 3B+ and this mobo only cost me £79.99. PCIe access is so much more ubiquitous than 40-pin GPIO so is always a more attractive option.
We do not see things as they are. We see things as we are.
Back to Top
Ash View Drop Down
Senior Member
Senior Member
Avatar

Joined: 18 Mar 2013
Location: Dorset
Status: Offline
Points: 4334
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ash Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 7:03pm
I do have a question regarding using a Raspberry Pi HAT such as the HifiBerry Digi+ Pro with a non-Pi computer such as the UP Squared V2. This is an x86 board (mine uses a Pentium processor) and the 40-pin GPIO connector has the same pinout as the Pi. However, as the instruction set architecture is not ARM-based, I assume the regular driver for it will not just simply work? I would have to write programming code/text in something like Command Prompt or Powershell to configure the hardware?
We do not see things as they are. We see things as we are.
Back to Top
ServerBaboon View Drop Down
Senior Member
Senior Member
Avatar

Joined: 16 Jan 2008
Location: NW England
Status: Offline
Points: 970
Post Options Post Options   Thanks (0) Thanks(0)   Quote ServerBaboon Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 8:14pm
Post a link to the board technical details.


No you will not be able to use an Arm driver,. However I believe the config for most of the hats are in the Linux distribution for the Raspberry Pi so you maybe lucky that someone has compiled an Intel version.

What is the os the computer you are using?

I will emphasise the word lucky above, I interested to see if it's actually electrically compatible with Pi Hats.



Steve

-------------

Various bits of GSP Kit ..well two so far, unless you count the cables that is.
Back to Top
Ash View Drop Down
Senior Member
Senior Member
Avatar

Joined: 18 Mar 2013
Location: Dorset
Status: Offline
Points: 4334
Post Options Post Options   Thanks (0) Thanks(0)   Quote Ash Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 8:20pm
https://up-shop.org/up-squared-v2-series.html

This is an example. All the subsequent UP boards have the same pinout as the original UP board, which uses the same layout as the Raspberry Pi. I guess I won't be going down this route without becoming a fully-fledged "software developer" and writing pages of code? I would be able to use Windows 10 Pro or a Linux distro. With a computer like this, you could directly compare GPIO and PCIe signal paths as the hardware for both is accessible.


Edited by Ash - 10 Feb 2023 at 8:27pm
We do not see things as they are. We see things as we are.
Back to Top
ServerBaboon View Drop Down
Senior Member
Senior Member
Avatar

Joined: 16 Jan 2008
Location: NW England
Status: Offline
Points: 970
Post Options Post Options   Thanks (0) Thanks(0)   Quote ServerBaboon Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2023 at 8:56pm
Let's just say this to this does not look to be the easiest solution and would look to require some coding knowledge. Not necessarily to write a driver but recompile the drivers / kernal for x86.

When I have drunk less wine I will do some googling.




Steve

-------------

Various bits of GSP Kit ..well two so far, unless you count the cables that is.
Back to Top
