DIY Turntable

 Post Reply Post Reply Page  <123>
Author
Fatmangolf View Drop Down
Admin Group
Admin Group
Avatar

Joined: 23 Dec 2009
Location: Middlesbrough
Status: Offline
Points: 5337
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fatmangolf Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2015 at 9:50pm
Really nice work. I used to have a Q-deck but it had a tragic accident. Wish I had kept the arm which was pretty decent.

Graham have you considered stripping the motor/PCB and platter from a 1200/10 to fit into a new chassis?
Jon

Open mind and ears, whilst owning GSP Genera, Accession, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC.
Back to Top
ICL1P View Drop Down
Senior Member
Senior Member
Avatar

Joined: 04 Aug 2012
Location: Faringdon, Oxon
Status: Offline
Points: 1802
Post Options Post Options   Thanks (0) Thanks(0)   Quote ICL1P Quote  Post ReplyReply Direct Link To This Post Posted: 23 Mar 2015 at 10:16pm
Originally posted by Fatmangolf Fatmangolf wrote:

Graham have you considered stripping the motor/PCB and platter from a 1200/10 to fit into a new chassis?

Like this?
Ifor
=====
Reflex M, CuSat50, Majestic DAC, a Proprius pair.
Back to Top
GrahamD View Drop Down
New Member
New Member


Joined: 13 Feb 2015
Location: Auckland NZ
Status: Offline
Points: 34
Post Options Post Options   Thanks (0) Thanks(0)   Quote GrahamD Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2015 at 8:29am
Originally posted by Fatmangolf Fatmangolf wrote:



Graham have you considered stripping the motor/PCB and platter from a 1200/10 to fit into a new chassis?


Certainly have considered the possibility but the problem is finding a donor turntable for a sensible price.
Down here in NZ Technics owners think their turntables are priceless even if they have spent their life at the hands of a wild DJ. I have my eye on an armless SL120 at present.

Cheers
Graham.
Back to Top
Fatmangolf View Drop Down
Admin Group
Admin Group
Avatar

Joined: 23 Dec 2009
Location: Middlesbrough
Status: Offline
Points: 5337
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fatmangolf Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2015 at 9:59pm
Originally posted by ICL1P ICL1P wrote:

Originally posted by Fatmangolf Fatmangolf wrote:

Graham have you considered stripping the motor/PCB and platter from a 1200/10 to fit into a new chassis?

Like this?


Yes
Jon

Open mind and ears, whilst owning GSP Genera, Accession, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC.
Back to Top
Fatmangolf View Drop Down
Admin Group
Admin Group
Avatar

Joined: 23 Dec 2009
Location: Middlesbrough
Status: Offline
Points: 5337
Post Options Post Options   Thanks (0) Thanks(0)   Quote Fatmangolf Quote  Post ReplyReply Direct Link To This Post Posted: 24 Mar 2015 at 10:09pm
Originally posted by GrahamD GrahamD wrote:

Originally posted by Fatmangolf Fatmangolf wrote:



Graham have you considered stripping the motor/PCB and platter from a 1200/10 to fit into a new chassis?


Certainly have considered the possibility but the problem is finding a donor turntable for a sensible price.
Down here in NZ Technics owners think their turntables are priceless even if they have spent their life at the hands of a wild DJ. I have my eye on an armless SL120 at present.

Cheers
Graham.


Thanks Graham, I agree about the price/availability. I saw a beaten up £120 SL1200 a few weeks back and thought about trying a couple of hardwood slabs with the motor and PCB sitting on the bottom one with a cover over the cutout in the top slab. I got as far as the armboard mounting then I thought about the state of the platter and whether the results would look decent. Your excellent work reminded me of that fleeting moment.

Jon

Open mind and ears, whilst owning GSP Genera, Accession, Elevator EXP, Solo ULDE, Proprius amps, Cusat50 cables, Lautus digital cable, Spatia cables and links, and a Majestic DAC.
Back to Top
SnrDidcot View Drop Down
New Member
New Member
Avatar

Joined: 30 Jan 2019
Location: Didcot
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote SnrDidcot Quote  Post ReplyReply Direct Link To This Post Posted: 17 Feb 2019 at 8:45pm

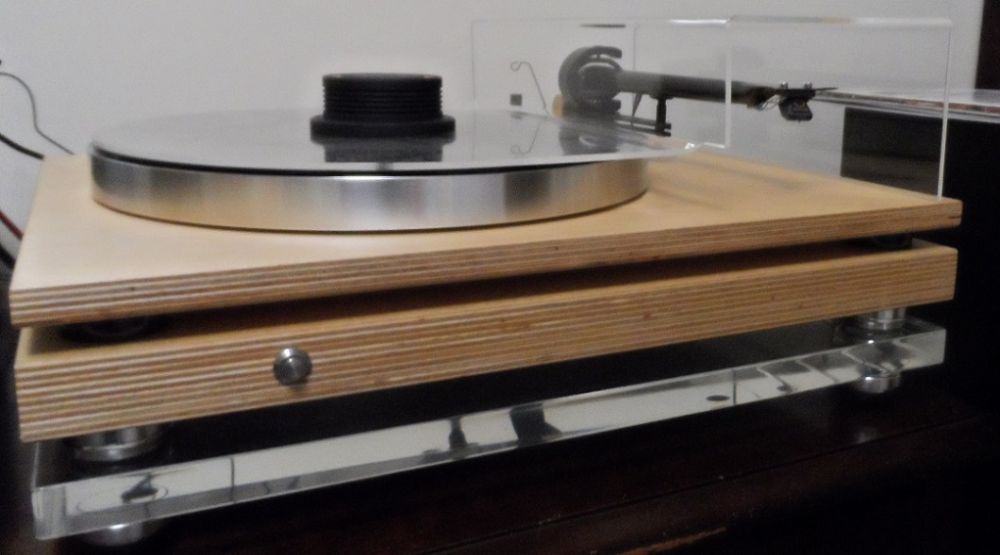

I know it's odd to post a reply to such an old post but I thought it was the ideal place to show the forum a picture of my own DIY turntable. A defunct L*nn Axis was the donor for the bearing, inner & outer platters. The motor was from a retired LP12, the Project 9cc was off of Ebay ( as was the power supply ), and the Goldring G1042 came to me via Gumtree where some bloke didn't like the sound of it.

The idea(s) behind my design were isolation, isolation, isolation, the 20mm thick acrylic plinth rest on aluminium feet placed on top of sorbothane hemispheres. The main plinth 35mm Baltic birch ply holds the motor and the power supply. The top plinth holds the bearing and arm is 12mm think and separated from the motor plinth by 10mm think sorbothane washers.

Great experience, would recommend anyone have a go at there own.
Back to Top
Richardl60 View Drop Down
Senior Member
Senior Member


Joined: 04 Nov 2014
Location: Yorkshire
Status: Offline
Points: 1468
Post Options Post Options   Thanks (0) Thanks(0)   Quote Richardl60 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Feb 2019 at 10:24pm
Looking good!
The Source turntable, Audiomods V micrometer, Dynavector XX2-2, Leema Antila 2Seco CD player, TDL studio 1.
Back to Top
